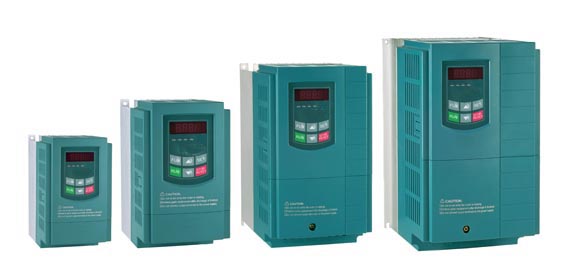

E2000 series AC drives(0.2-220KW)
Application:
E2000 series of AC drives is our newest product of sensorless vector control type. The system function is enriched and advanced vector control core is adopted. With the high utilization rate of voltage, the high power factor, the fast dynamic response, high precision, and low noise. E2000 series can meet wide-ranging application.
Characteristic:
● Auto torque promotion and auto slip compensation realizes larger output torque at low frequency.
● User-defined curve, V/F curve can be adjusted.
● Lower-noise, carrier-wave frequency can be adjusted from 2KHZ to 10KHZ.
● Control protection is immediate and reliable, which improves system stability.
● Built-in filter is optional
● Compatible with NPN and PNP types.
● Advanced vector control technology realizes more precise control and more excellent performance.
● Torque is elevated automatically, starting torque reaches 150% at 0.5Hz, and torque control precision reach ±5%.
● Output frequency is 0.50-650Hz. The highest resolution is 0.01Hz.
Main function:
● Built-in braking unit.
● Built-in EMI filter.
● Kinds of load type: beeline type, square type, under-defined V/F curve type and auto torque compensation type.
● Jogging speed control, multistage speed-control, external analog signal speed control and PC/PLC speed control.
● Standard RS485 communication interface, PC/PLC control by MODBUS communication and several inverters can be operated at the same time.
● Frequency source includes given digit, given analog voltage and given MODBUS, etc.
● Frequency source includes given digit, given analog voltage and given MODBUS, etc.
● With double-polarity NPN and PNP type.
● 6 digital input terminals, each of which can be used as user-defined function terminals. 2 analog input terminals, one of which can be used to input voltage (0~5v, 0~10v) and the other can be used to input current (0~20 mA, 4~20 mA).
● 1 digital output terminal, 1 multifunction relay output terminal and 2 analog output terminals. One of analog terminal can be used to output voltage (0~5v, 0~10v) or current (0~20mA) and the other can be used to output current ((0~20 mA or 4~20 mA).
● With the twinkling display of preset frequency, running frequency can be easily set before running.
● Current stalling adjusting.
● Built-in DC braking.
E2000 Technical Specifications:
|
Items |
Contents |
Input |
Rated Voltage Range |
3-phase 400V±15%; single-phase 230V±15% |
Rated Frequency |
50/60Hz | |
Output |
Rated Voltage Range |
3-phase 0~400V;3-phase 0~230V |
Frequency Range |
0.50~200.0Hz | |
Control
Mode
|
Carrier Frequency |
2K~10KHz; |
Input Frequency Resolution |
Digital setting: 0.01Hz, analog setting: max frequency 0.1% | |
Control Mode |
V/F control and SVC control | |
Overload Capacity |
150% rated current, 60 seconds. | |
Torque Elevating |
Auto torque promotion, Manual Torque Promotion 0.1%~30.0% (VVVF), 0.5Hz/150% (SVC) | |
V/F Curve |
4 kinds of modes: beeline type, square type, under-defined V/F curve and auto torque compensation. . | |
DC Braking |
DC braking frequency: 1.0~5.0 Hz, braking time: 0.0~10.0s | |
Jogging Control |
Jogging frequency range: min frequency~ max frequency, jogging acceleration/deceleration time: 0.1~3000.0s | |
Auto Circulating Running and multi-stage speed running |
Auto circulating running or terminals control can realize 15-stage speed running. | |
Built-in PID adjusting |
Easy to realize a system for process closed-loop control | |
Operation Function |
Frequency Setting |
Potentiometer or external analog signal (0~5V, 0~10V, 0~20mA); keypad (terminal)▲/▼ keys, external control logic and automatic circulation setting. |
Start/Stop Control |
Terminal control, keypad control MODBUS control. | |
Running Command Channels |
3 kinds of channels from keypad panel, control terminal and MODBUS. | |
Frequency Source |
given digit, given analog voltage, given analog current, given pulse frequency, given MODBUS, PID adjusting and stage-speed control. | |
Accessorial frequency Source |
given digit, given analog voltage, given analog current, PID adjusting and stage-speed control. | |
Optional |
Built-in EMI filter, built-in braking unit, tele-control panel | |
Protection Function |
Input out-phase, input under-voltage, DC over-voltage, over-current, over-load, current stall, over-heat, external disturbance | |
Display |
LED nixie tube showing present output f |
