Use |

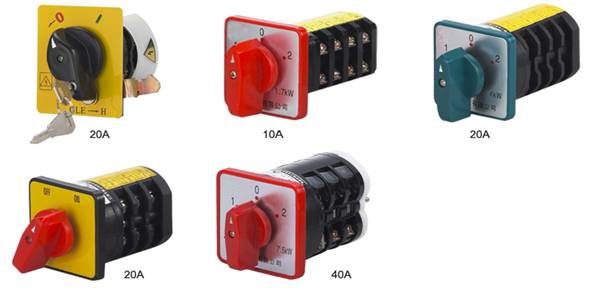

HZ5D series combination switches mainly suitable for ac 380V 50Hz, rated voltage and current to the rated
|
Conform to the standards
|
GB/14048.5-2001。
|

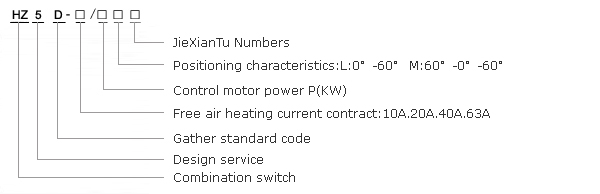

Models of meaning |
|
Classification
|
According to the purposes points: 4.1 power switch and motors switch: bipolar L01, three very L 4.2 two voltage switch: bipolar M04, three very M06, 4.3 Motor inverter switch to M05; : 4.5 variable speed motor speed switch: M08, three M16 speed. |
Install size and shape |

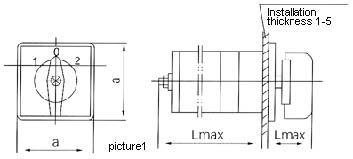

6.1 Shape dimension |
|

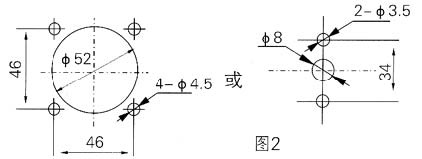

6.2 Installation dimensions a)HZ5D-10 Installation dimensions (see figure 2. |
|

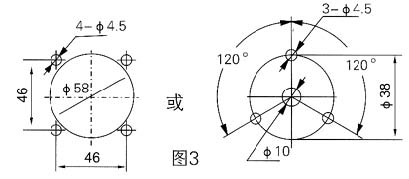

b)HZ5D-20 Installation dimensions (see figure 3. |
|

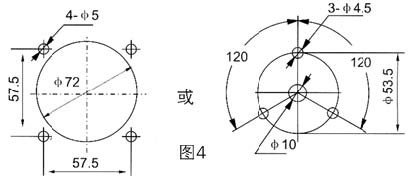

C)HZ5D-40 Installation dimensions (see figure 4. |
|
