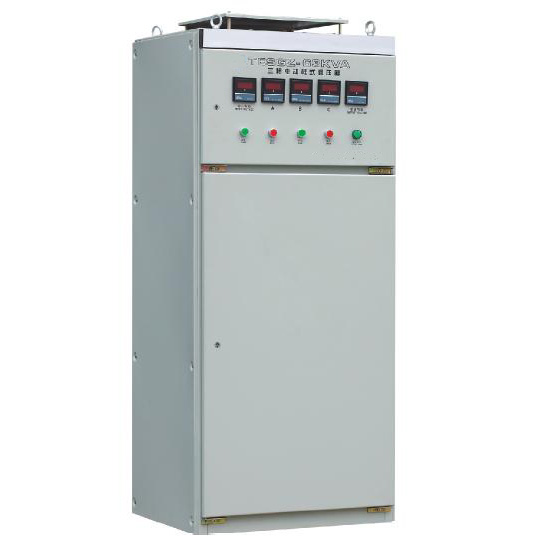

General (TEDGZand TESGZ single-phase and three-phase high power post type voltage regulator)

TEDGZ  and  TESGZ  series  single - phase and three-phase high power post type voltage regulator is a kind of new product  developed  and  de signed  by  our  company  according  to  the  market demand, to satisfy users' demands.
The waveform of output voltage of this voltage  regulator  will  not  distort  ( distortion  rate  increment  of  the output voltage waveform is <1%), adopts electric operating mechanism, it can be closed  remote  control ,  to  reduce  work
intensity, and the output voltage can be adjusted from zero. Besides, it also has advantages of strong instantaneousoverload capability, no-load current, no-load low consumption, high efficiency, low noise, long  service life , etc . It is
suitable for various inductive, capacitive and resistive loads.

Rated apacity
(KVA)

Phase
no.

Rated frequency
(Hz)

Rated input voltage(V)

Range
of output voltage(V)

Rated
output current(A)

Outline size(W¡ÁL¡ÁH)mm

16

1

50

220

0~250

64

500¡Á600¡Á1500

20

80

500¡Á600¡Á1500

25

100

500¡Á600¡Á1500

32

128

600¡Á630¡Á1500

40

160

600¡Á630¡Á1500

50

200

600¡Á630¡Á1500

63

252

700¡Á1200¡Á1700

80

320

700¡Á1200¡Á1700

100

400

700¡Á1200¡Á1700

125

500

700¡Á1200¡Á1700

25

3

380

0~430

33

650¡Á570¡Á1650

32

43

650¡Á570¡Á1650

40

53

700¡Á630¡Á1700

50

67

700¡Á630¡Á1700

62

84

700¡Á630¡Á1700

80

107

700¡Á1200¡Á1700

100

134

700¡Á1200¡Á1700

125

168

160

215

1200¡Á1500¡Á1700
