Application

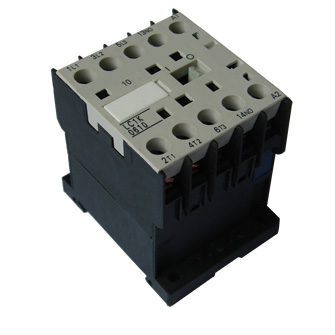

LC1-K Series AC cortactor is suitable for use in the circuit up to the rate and frequent starting, controlling the AC motor. The addtion of auxiliary contact group to the contactor, combined with the proper thermal relay, can act to protect the circuit bound to overload.
Specifications
Type |
Rated working current A |
AC-3 use group control power KW |
Contact data(1) | |||
(380V) |
220V |
380/415V |
440/500V |
660V | ||
CJX2-K06 |
6 |
1.5 |
2.2 |
3 |
3 |
3P+NC 3P+NO |
CJX2-K09 |
9 |
2.2 |
4 |
4 |
4 |
3P+NC 3P+NO |
CJX2-K12 |
12 |
3 |
3 |
5 |
5 |
3P+NC 3P+NO |
Specifications |
CJX2-K06 |
CJX2-K09 |
CJX2-K12 | ||
Use group under AC-3 |
6 |
9 |
12 | ||
Rated working current (le)A |
5 |
7.5 |
10 | ||
Conventional thermal current(Ith)A |
16 |
20 |
20 | ||
Rated working voltage(Ue)V |
380 660 | ||||
Rated insullation voltage (Ui)V |
690 | ||||
AC-3 (6Ie Ie) |
Electrical life (time) |
0.5x 106 | |||
Operation frequency h-1 |
1200 | ||||
AC-3 (6Ie Ie) |
Electrical life (time) |
10x104 | |||
Operation frequency h-1 |
300 | ||||
Mecnical life |
3x106 | ||||
|
