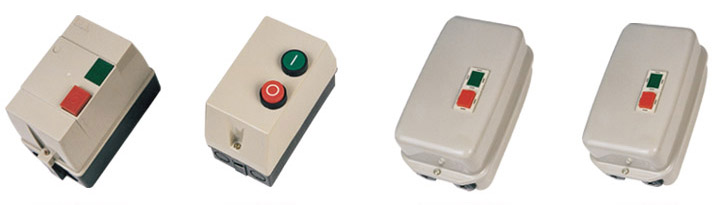

QCX2 series magnetic starter
-
Application
LE1-D magnetic starter is mainly applied to circuit of AC 50 or 60Hz, voltage up to 550V for far distance making and breaking circuit and frequently starting and controlling motor. It has the features of small volume, light weight, low power consumption, high efficiency, safe and reliable performance etc.
Specification
Maximum power Max Code Number Suitable Thermal Relay(A) Ac3 duty(KW) operational 220V 380V 415V/440V current(A) LL NL(3) 230V 400V (long life) (normal life) 1.1 2.2 2.2 6 - LE1-EC135... LR3 E010 2.2 4 4 9 LE1-D094... - LR2-D1312 LE1-D093... - LR2-D1314 3 5.5 5.5 12 LE1-D124... LE1-D094... LR2-D1316 LE1-D123... LE1-5093... 4 7.5 9 18 LE1-D188... LE1-D124... LR2-D1321 LE1-D185... LE1-D123... 5.5 11 11 25 LE1-D258... LE1-D188... LR2-D1322 LE1-D255... LE1-D185... LR2-D2353 7.5 15 15 32 LE1-D325... LE1-D255... LR2-D2355 11 18.5 22 40 LE1-D405... LE1-D325... LR2-D3353 LR2-D3355 15 22 25 50 LE1-D505... LE1-D405... LR2-D3357 LR2-D3359 18.5 30 37 65 LE1-D655... LE1-D505... LR2-D3361 22 37 45 80 LE1-D805... LE1-D655... LR2-D3363 LR2-D3365 25 45 45 95 LE1-D955... LE1-D805... LR2-D3365
