The case scenarios
Minniature Relays JQC-3F(T73)
-
JQC

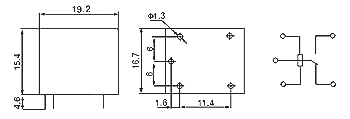

Size: 19.2×15.5×15.4
Tirminal layout: 1Z,1H
Contact capacity:
Contact resistance: ≤50mΩ
Inulation resistance: ≥100MΩ
Dielectric strength: BOC 1000VAC/BCC 1500VACModel
JRC-19(4078)
JQC
JZC
JQC
Coil nominal voltage
DC 3 to 48V
DC 3 to 48V
DC 3 to 48V
DC 3 to 48V
Coil nominal power
DC≤0.36W
DC≤0.36W
DC≤0.36W
DC≤0.36W
Electrical life
105OPS
105OPS
105OPS
105OPS
Mechanical life
106OPS
106OPS
106OPS
106OPS
Operating temperature
Weight
≤
≤
≤
≤
Mounting methods
Printed-circuit board
Printed-circuit board
Printed-circuit board
Printed-circuit board
