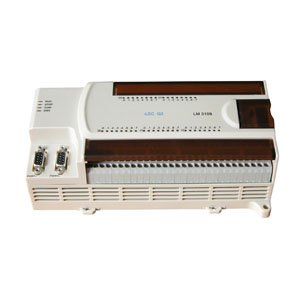

► CPU Features

Local I/O

24 Channels DC24V DI, 16 Channels Relay DO

Expandable I/O

7 modules

High-speed counter

Monophase counter: 3 points, 100KHz

Biphase counter: 2 points, 100KHz

Pulse output

N/A

Pulse catch

3 points

Interrupt input

3 points

Analog potentiometer

2, value setting range 0¡«255

User program memory

capacity

120K bytes

Retain area

6K bytes

Input data memory

512 bytes

Output data memory

512 bytes

Mid-variables memory

8K bytes

Global memory

24K bytes

Password

Yes

Real-time clock

Built-in

Timer

No limit (1ms as minimum unit)

Counter

No limit (Maximum counting range: 16 bit)

Basic instructions

283

Function blocks

Over 70

Operation speed

0.65¦Ìs (Basic instruction)

► Power Supply Specifications

Power supply

220V AC@50Hz

Allowed range

187V AC¡«242V AC@50Hz

Current consumption (MAX)

200mA

Output voltage

24V DC

Allowed range

22.8V DC¡«25.2V DC

Current output

+24VDC (To expansion bus)

320mA

+24V DC (To the outside)

400mA

+5V DC (To expansion bus)

1300mA

Short circuit protection

900mA, 24VDC output

► Communication Features

Communication interface

2 (RS-232 and RS-485) (Non-isolating)

Communication protocol

Proprietary protocol/MODBUS/Free protocol

► Input Features

Input type

Sink/Source

Input voltage rated value

24V DC

Allowed range

0V DC¡«30V DC

Logic 1 signal

15¡«30V DC, allowed minimum current 3mA

Logic 0 signal

0¡«5V DC, allowed maximum current 1mA

Input delay time

<0.6ms (Rated input voltage)

Isolation mode

Photocoupler isolation

Isolation group

3 groups

Maximum Isolation Voltage

1500VAC

► Output Features
