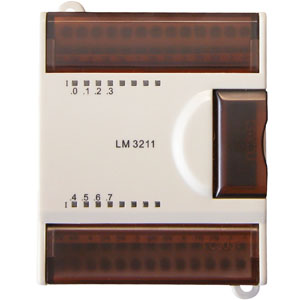

DI Module LM3211 (8CH DI)
-
DI Module LM3211 (8CH DI)
• Input channel: 8
• Rated Voltage: 220V AC
► Input Features
Input channel
8
Input voltage rated value
220V AC
Allowed range
164V AC¡«264V AC (50/60Hz)
Logic 1 signal (Minimum)
164V AC
Logic 0 signal (Maximum)
80V AC
Input delay time
<20ms (Rated input voltage)
Isolation mode
Photocoupler isolation
Isolation group
8 groups
Maximum Isolation Voltage
1500VAC
► Physical Features
Dimensions
Weight
<
Power
Consumption
+24VDC (Provided by
expansion bus)
0mA
+24VDC (External supply)
0mA
+5VDC (Provided by
expansion bus)
60mA
