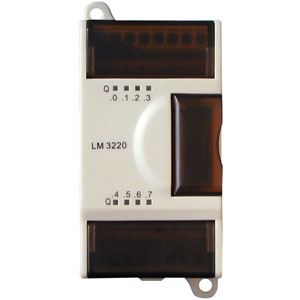

► Output Features

Output Channel

8

Output type

Transistor

Output voltage

24V DC

Allowed range

20.4V DC¡«28.8V DC

Transistor conduction voltage drop

<0.5V (Output logic ¡°1¡±, current 1A)

Logic 1 maximum output current

1A

Logic 0 maximum leakage current

1mA

Common end output current total

<4A

Surge current

<8A, 100ms

Contact impedance

<0.2¦¸

Built-in protection

The recoverable fuse for each group:

8A, 25¡æ

Response

time

Status "0" to "1"

<1ms

Status "1" to "0"

<1ms

Isolation mode

Photocoupler isolation

Isolation group

2 groups

Maximum Isolation Voltage

1500VAC

► Physical Features

Dimensions

50mm(L)¡Á90mm(W)¡Á70mm (H)

Weight

<200g

Power

Consumption

+24VDC (Provided by

expansion bus)

0mA

+24VDC (External supply)

Depend on actual load

+5VDC (Provided by

expansion bus)

100mA
