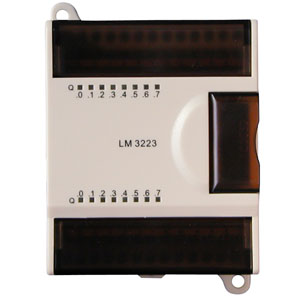

► Output Features

Output Channel

16

Output type

Relay

Output voltage

24V DC or 24 V AC ¡«230V AC

Allowed range

5V DC¡«30V DC or 5V AC¡«250V AC

Common end output current total

<10A

Output switch capacity

2A, resistance load

Minimum load

10mA (contact voltage 5VAC or 5VDC)

Over current protection

N/A

Contact impedance

<0.2¦¸

Isolation group

4 groups

Isolation voltage between coil and

contact

3000VAC, 1 minute, leakage current 1mA

Isolation voltage between contacts

750VAC, 1 minute, leakage current 1mA

Isolation resistance (minimum)

100M¦¸ between contacts or between coil

and contact under 500VDC

Contact switch delay time

<10ms

Contact switch frequency

(maximum)

1Hz

Relay mechanical life

No load: over 10,000,000 times; Rated

Resistive load 2A: over 100,000 times

► Physical Features

Dimensions

50mm(L)¡Á90mm(W)¡Á70mm (H)

Weight

<200g

Power

Consumption

+24VDC (Provided by

expansion bus)

40mA

+24VDC (External supply)

Depend on actual load

+5VDC (Provided by

expansion bus)

60mA
