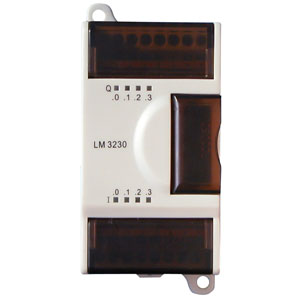

► Input Features

Input channel

4

Input type

Sink/Source

Input voltage rated value

24V DC

Allowed range

0V DC¡«30V DC

Logic 1 signal

15¡«30V DC, allowed minimum current 3mA

Logic 0 signal

0¡«5V DC, allowed maximum current 1mA

Input delay time

<10ms (Rated input voltage)

Isolation mode

Photocoupler isolation

Isolation group

1 group

Maximum Isolation Voltage

1500VAC

► Output Features

Output Channel

4

Output type

Transistor

Output voltage

24V DC

Allowed range

20.4V DC¡«28.8V DC

Surge current

<8A, 100ms

Contact impedance

<0.2¦¸

Built-in protection

The recoverable fuse for each group:

8A, 25¡æ

Transistor conduction voltage drop

<0.5V (Output logic ¡°1¡±, current 1A)

Logic 1 maximum output current

1A

Logic 0 maximum leakage current

1mA

Response

time

Status "0" to "1"

<1ms

Status "1" to "0"

<1ms

Isolation mode

Photocoupler isolation

Isolation group

1 group

Maximum Isolation Voltage

1500VAC

► Physical Features

Dimensions

50mm(L)¡Á90mm(W)¡Á70mm (H)

Weight

<200g

Power

Consumption

+24VDC (Provided by

expansion bus)

0mA

+24VDC (External supply)

Input 20mA, output depend on

actual load

+5VDC (Provided by

expansion bus)

90mA
