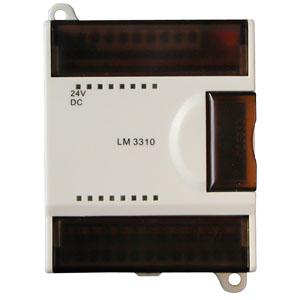

AI Module LM3310 (4CH Analog Input)
-
AI Module LM3310 (4CH Analog Input)
• Input channel: 4
• Input precision: 0.5% full range, at 25℃
• Sampling refresh time (every 4 channels): 6ms
► Input Features
Input channel
4
Voltage
0～10V
Current
0～20mA
Current
4～20mA
Input precision (monopole)
0.5% full range, at
Input impedance
>1MΩ (Voltage), 500Ω (Current)
Maximum input current
<30mA
Maximum input voltage
<30V
Temperature drift
±100ppm/℃
Isolation mode
Isolation between input and internal circuit;
no isolation between channels
Maximum Isolation Voltage
1500VAC
Sampling refresh time
6ms (every 4 channels)
► Physical Features
Dimensions
Weight
<
Power
Consumption
+24VDC (Provided by
expansion bus)
0mA
+24VDC (External supply)
30mA
+5VDC (Provided by
expansion bus)
60mA
