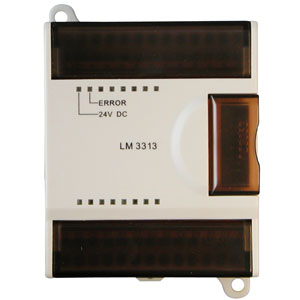

AI Module LM3313 (8CH Analog Input)
-
AI Module LM3313 (8CH Analog Input)
• Input channel: 8
• Input precision: 0.5% full range, at 25℃
• Sampling refresh time (every 8 channels): <15ms
► Input Features
Input channel
8
Voltage
-10～10V
Current
-20～20mA
Input precision
0.5% full range, at
Input impedance
>1MΩ (Voltage), 500Ω (Current)
Maximum input current
<30mA
Maximum input voltage
<15V
Temperature drift
±100ppm/℃
Isolation mode
Isolation between input and internal circuit;
no isolation between channels
Maximum Isolation Voltage
1000VDC
Sampling refresh time
<15ms
► Physical Features
Dimensions
Weight
<
Power
Consumption
+24VDC (Provided by
expansion bus)
0mA
+24VDC (External supply)
35mA
+5VDC (Provided by
expansion bus)
100mA
