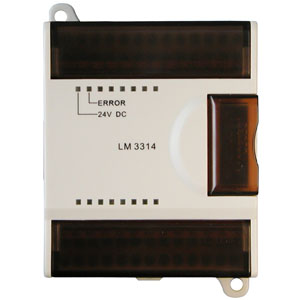

AI Module LM3314 (8CH NTC Input)
-
AI Module LM3314 (8CH NTC Input)
• Input channel: 8
• Input precision: 0.2% full range, at 25℃
• Sampling refresh time (every 8 channels): 1s
► Input Features
Input channel
8
NTC type
R = 10K at
Input precision
0.2% full range, at
Temperature resolution
Temperature drift
±100ppm/℃
Isolation mode
Isolation between input and internal circuit,
no isolation between channels
Maximum Isolation Voltage
1500VAC
NMMRR
Better than 60dB@50HZ
CMMRR (50Hz, AC 50Vrms)
Better than 80dB
Sampling refresh time
1s (every 8 channels)
► Physical Features
Dimensions
Weight
<
Power
Consumption
+24VDC (Provided by
expansion bus)
0mA
+24VDC (External supply)
40mA
+5VDC (Provided by
expansion bus)
100mA
