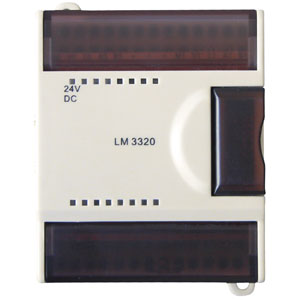

AO Module LM3320 (2CH Analog Output)
-
AO Module LM3320 (2CH Analog Output)
• Output channel: 2
• Output precision: 2% full range (0～55℃)
• Typical precision: 0.5% full range, at 25℃
► Output Features
Output channel
2
Output range
Voltage
0～10V
Current
0～20mA
Precision (0～
2% full range
Typical precision
0.5% full range, at
Setup time
Voltage output
<=10us
Current output
<=10us
Drive capacity
Voltage
Minimum 2000Ω
Current
Maximum 600Ω
Isolation mode
Photocoupler isolation
Maximum Isolation Voltage
1500VAC
► Physical Features
Dimensions
Weight
<
Power
Consumption
+24VDC (Provided by
expansion bus)
0mA
+24VDC (External supply)
80mA
+5VDC (Provided by
expansion bus)
60mA
