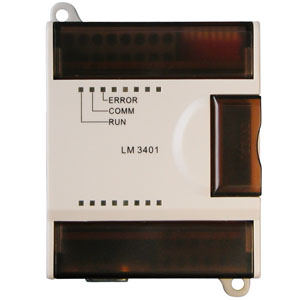

► Communication Functions

No. of communication port

1

Interface type

RS - 485

Maximum Isolation Voltage

1500VAC

PROFIBUS-DP baud rate

9.6, 19.2, 45.45, 93.75, 187.5, 500

kbps and 1, 1.5, 3, 6, 12Mbps

(auto setting)

Station address setup

0£­126 (set by switch)

Maximum No. of stations for each section

32

Maximum No. of stations for each network

126

Isolation mode

Photocoupler isolation

► Physical Features

Dimensions

75mm(L)¡Á90mm(W)¡Á70mm (H)

Weight

<200g

Power

Consumption

+24VDC (Provided by

expansion bus)

0mA

+24VDC (External supply)

20mA

+5VDC (Provided by

expansion bus)

120mA
