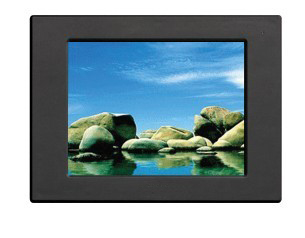

MT4500T
-
MT4500T ModelMT4500T¡óPerformance specification¡óDisplay10.4" TFT(211.2¡Á158.4mm)Resolution640*480 pixelsColor65536 colorsBacklight2 CCFLBrightness400cd/m2Backlight life50000 hr.Touch Panel4-wire precision resistance networkProcessor32-bit RISC CPU 400MHzMemory8M FLASH, 16M SDRAMRecipe memory & RTC256KB & RTCPrinter port1 DB25, Support SPRT SP-DN16PH, HP LaserJet P2014, EPSON LQ 305KTEthernetNoProgram download1 USB SLAVE portCOM portCOM0:RS232/RS485-2/RS485-4,COM1:RS232/RS485-2/RS485-4, COM2:RS232¡óElectrical specification¡óRated power10.8WRated voltageDC24VInput rangeDC21¡«DC28VPower down allowed<5msInsulation resistanceGreater than 50M¦¸@ 500V DCDielectric strength test500 VAC 1 minute¡óStructure specification¡óShell colorDeep grayShell materialABSDimensions(mm)310¡Á 230 ¡Á 54Cutout size(mm)298 ¡Á 218Weight1.67kg¡óEnvironment specification¡óOperating temperature-0¡«45¡æOperating humidity10~90% non-condensingStorage temperature-10¡«60¡æStorage humidity10~90% non-condensingShockproof test10~25Hz (X, Y, Z direction, 2G, 30 minutes)Cooling methodNatural air cooling¡óCertification¡óDegree of protectionIP65 (front panel)CE certificationEN61000-6-2:2005 and EN61000-6-4:2007FCC compatibilityComplies with FCC Class A¡óOutline dimension¡ó
