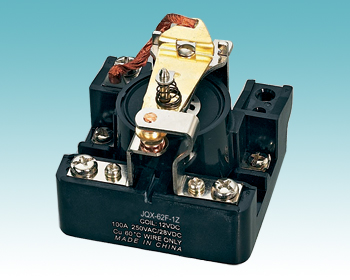

Power Relays JQX-62F-1Z
-
JQX

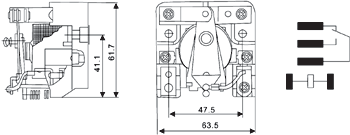

Size(mm): 61.7×63.5×56.5
Tirminal layout: 1Z
Contact capacity:
Contact resistance: ≤50mΩ
Inulation resistance: ≥1000MΩ
Dielectric strength: BOC 1500VAC/BCC 2500VACModel
JQX
JQX
JQX
JQC
Coil nominal voltage
DC 6 to 220V
DC 6 to 220V
DC 6 to 220V
DC 6 to 220V
AC 6 to 380V
AC 6 to 380V
AC 6 to 380V
AC 6 to 380V
Coil nominal power
DC≤4.8W
DC≤1.8W
DC≤2.0W
DC≤2.0W
AC≤7.5VA
AC≤4VA
AC≤104VA
AC≤10VA
Electrical life
105OPS
105OPS
105OPS
105OPS
Mechanical life
106OPS
106OPS
106OPS
106OPS
Operating temperature
Weight
≤
≤
≤
≤
Mounting methods
Scfrew Mounting
Scfrew Mounting
Scfrew Mounting
Scfrew Mounting
