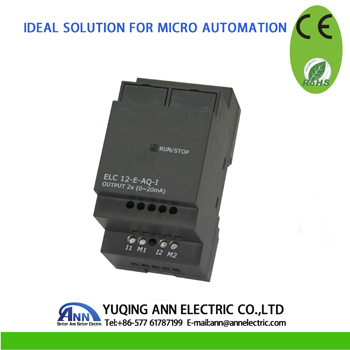

ELC12-E-AQ-I Expansion Modules
-
Logic- Expansion IO
To ensure diverse applications can be accomplished, xLogic Micro PLC also provides a wide selection of expansion modules along with its powerful CPU units, with the need of your industrial process control applications, various expansion units enhance the basic to provide additional capabilities , such as :
A range of Digital and Analogue I/O
RS485 connectivity
SMS communication
Ethernet connectivity
Model Supply voltage Inputs Outputs ELC12-E-8AC-R AC 110~240V 4 Digital 2 Relays(3A,Q1-Q2) +2 Relays(10A,Q3-Q4) ELC12-E-8DC-DA-R DC12V 每 DC24V 4 Digital / analog 2 Relays(3A,Q1-Q2) +2 Relays(10A,Q3-Q4) ELC12-E-8DC-DI DC12V每24V 8 DI none ELC12-E-8AC-DI AC110~240V 8 DI none ELC12-E-PT100 DC12V 每 DC24V 2 Channels PT100, resolution: 0.1∼(12bits), temperature range : -50⊥- 200⊥ ﹛ none ELC12-E-AQ-V DC15V 每 DC24V None 2 Channels (DC 0＃10V), Voltage Signal ELC12-E-AQ-I DC12V 每 DC24V None 2 Channels ( 0＃20mA) , Current Signal ELC12-E-AI(I) DC12V 每 DC24V 4 Channels (0/4＃..20 mA), Current Signal none ELC12-E-RS485 DC12V 每 DC24V isolated 485 converter,used to bring out the terminals of RS485 port built-in ELC-12 series CPU for connection with third party devices.
