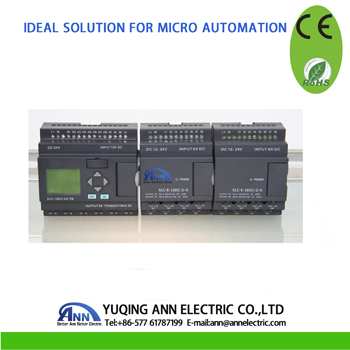

MODEL |
DESCRIPTION |
|
|
|
|
|
|
|
Expansion |
Supply voltage |
Inputs |
Outputs |
High-speed count |
PWM |
HMI |
RTC |
|
|
|
|
|
|
|
|
|
ELC-18AC-R-U |
yes |
AC 110~240V |
12 digital |
6 relays(10A) |
None |
no |
yes |
yes |
ELC-18DC-D-R-U |
yes |
DC12V-DC24V |
12 digital |
6 relays(10A) |
2 routes(60KHZ) |
no |
yes |
yes |
ELC-18DC-DA-R-U |
yes |
DC12V-DC24V |
8 digital/analog+4 digital |
6 relays(10A) |
2 routes(60KHZ) |
no |
yes |
yes |
ELC-18DC-DA-TN-U |
yes |
DC12V-DC24V |
8 digital/analog+4 digital |
6 transistors(PNP) |
2 routes(60KHZ) |
2 ch |
yes |
yes |
ELC-18DC-DA-TP-U |
yes |
DC12V-DC24V |
8 digital/analog+4 digital |
6 transistor(NPN) |
2 routes(60KHZ) |
2 ch |
yes |
yes |
|
扩展模块系列(Expansion modules) |
EXPANSION |
|
ELC-E-16AC-R |
|
AC 110~240V |
8 digital |
4 relays(10A)+4relays(3A) |
|
no |
ELC-E-AI (I) |
|
DC24V |
4 points current signal input (0/4-20mA) |
|
|
ELC-E-PT100 |
3 routes Pt100 |
DC12V-DC24V |
temperature range : -50°- 200° |
resolution: 0.1°(12bits) |
|
ELC-E-AQ-V |
|
DC15v-DC24v |
0-10V signal |
2 routes analog outputs |
|
ELC-E-AQ-I |
|
DC12V-DC24V |
none |
2 Channels ( 0…20mA) , Current Signal |
|
ELC-E-16DC-DA-R |
|
DC12V-DC24V |
2digital/analog +6 digital |
4 relays(10A)+4relays(3A) |
|
ELC-E-16DC-DA-TN |
|
DC12V-DC24V |
2digital/analog +6 digital |
8 transistors(PNP) |
|
ACCESSORIES |
|
附件 (Accessories) |
|
|
ELC-MD204L |
|
Programmable display,3.7 inch , 192*64 pixels,support RS485 communication, STN LCD with background lights, 20 keys |
ELC-COPIER |
|
ELC-COPIER allows transfer of the program and parameters, secured back up and local storage. |
ELC-RS485 |
|
isolated 485 converter,used to bring out the the terminals of RS485 port in ELC-18 series CPU for connection with third party devices. |
|
|
ELC-RS232 |
|
RS232 communication module between PC and ELC units |
ELC-USB |
|
USB communication module PC and ELC units |
ELC-05AS |
|
switching power supply module, voltage:5 V, Current: 6A, Gamut voltage: 100-240VAC/140-340VDC |
|
|
|
ELC-12AS |
|
switching power supply module, voltage:12 V, Current: 3A, Gamut voltage: 100-240VAC/140-340VDC |
|
|
|
ELC-24AS |
|
switching power supply module, voltage:24 V, Current: 1.5A, Gamut voltage: 100-240VAC/140-340VDC |
|
|
|
ELC-05AL |
|
switching power supply module, voltage:5 V, Current: 10A, Gamut voltage: 100-240VAC/140-340VDC |
|
|
|
ELC-12AL |
|
switching power supply module, voltage:12 V, Current: 6A, Gamut voltage: 100-240VAC/140-340VDC |
|
|
|
ELC-24AL |
|
switching power supply module, voltage:24 V, Current: 3A, Gamut voltage: 100-240VAC/140-340VDC |
|
|
|
xLogic soft |
|
Programming software |
|
|
|
|
|
|
|
|
|
MODEL |
DESCRIPTION |
ELC-SMS-D-R |
|
SMS module(DC version and AC version ) |
