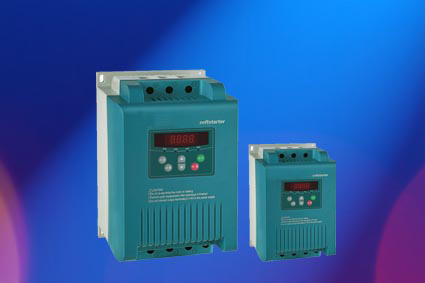

HFR2000 Series Softstarter(15-500KW)
HFR2000 adopts three input wires and six output wires design, with output-current token function, and on-line monitoring motor current, to realize motor over-load protection. The jogging control function can be used in worksite debugging. Air cooling design ensures system stable running. It is characteristic of convenient connection, smooth starting and motor protection and is widely applicable for starting and protection of three-phase motors in various industries.
Main function
● Startup mode:
☆ Current limiting startup: low down the start voltage and limit the start current by keypad setting and random adjusting.
☆ Voltage ramp startup: smooth start for motor, reduce the concussion of electric network by start current.
☆ Kick startup
● Stop mode: Free stop and Soft stop
● Control mode: keypad control, terminal control and PC/PLC control by MODBUS.
● System control function
☆ Intelligentized--The output and input connect point is programmable. Internal intelligentized programs for loading.
☆ Standard internal port (MODBUS) can realize computer control.
☆ LED display. Operator can set all the parameter and program by keypad control.
☆ Keypad control and remote control can switched over.
☆ Delay output relay function.
☆ Malfunction output relay function.
☆ One softstarter controls more than one motor.
● System protection function
☆ Over current protection
☆ Over-load protection
☆ Out-phase protection
☆ Overheat protection
Technical Specifications
