General-purpose Relay 737
-
737

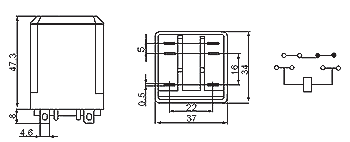

Size mm ： 37×34×47.3
Terminal layout:1Z
Contact capacity :
Contact resistance:≤50mΩ
Insulation resistance:≥500MΩ
Dielectric strength:BOC 1000VAC/BCC 1500VACModel
FMK-3Z
JQX-53FF-2Z
JQX-53FF-3Z
737
Coil rated voltage
DC 6 to 110V
DC 6 to 110V
DC 6 to 110V
DC 6 to 110V
AC 6 to 220V
AC 6 to 220V
AC 6 to 220V
AC 6 to 220V
Coil rated power
DC≤2.0W
DC≤2.0W
DC≤2.0W
DC≤2.0W
AC≤3.5VA
AC≤3.5VA
AC≤3.5VA
AC≤3.5VA
Electrical Life
105OPS
105OPS
105OPS
105OPS
Mechanical life
107OPS
107OPS
107OPS
107OPS
Operating temperature
Weight
≤
≤
≤
≤
Mounting methods
outlet
Printed Circuit board
Flange,outletPrinted Circuit board
Flange,outletPrinted Circuit board
Flange,outlet
