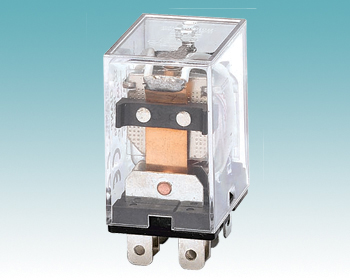

General-purpose Relay LY1

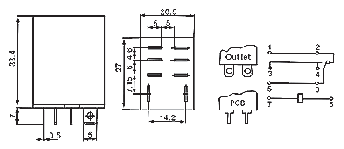

Structure:
Features:
Sizemm : 20.5×27×33.4
Terminal layout:1Z、1H
Contact capacity:
Contact resistanc:50mΩ
Insulation resistance:100MΩ
Dielectric strengt:BOC 1000VAC/BCC 1500VACMain technical parameters:
Model
JQX
JQX
HH63P(LY3)
HH64P(LY4)
Coil rated voltage
DC 6 to 220V
DC 6 to 220V
DC 6 to 220V
DC 6 to 220V
AC 6 to 380V
AC 6 to 380V
AC 6 to 380V
AC 6 to 380V
Coil rated power
DC≤0.9W
DC≤0.9W～1.5W
DC≤1.4W
DC≤1.5W
AC≤1.2VA
AC≤1.2 TO 2.5VA
AC≤2.0VA
AC≤2.5VA
Electrical Life
105OPS
105OPS
105OPS
105OPS
Mechanical life
107OPS
107OPS
107OPS
107OPS
Operating temperature
Weight
≤
≤
≤
≤
Mounting methods
Printed Circuit board
Flange,outletPrinted Circuit board
Flange,outletPrinted Circuit board
Flange,outletPrinted Circuit board
Flange,outlet
