The case scenarios

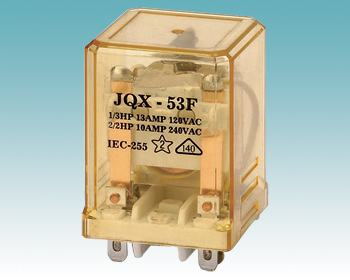

JQX-53F-2Z
-
JQX

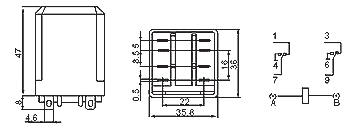

Sizemm： 35.8×36×47
Terminal layout:2Z
Contact capacity :
Contact resistance:≤50mΩ
Insulation resistance :≥500MΩ
Dielectric strength :BOC 1000VAC/BCC 1500VACModel
RR2P-U
JQX-53FF-2Z
JQX-53FF-3Z
737
Coil rated voltage
DC 6 to 110V
DC 6 to 110V
DC 6 to 110V
DC 6 to 110V
AC 6 to 380V
AC 6 to 220V
AC 6 to 220V
AC 6 to 220V
Coil rated power
DC≤2.0W
DC≤2.0W
DC≤2.0W
DC≤2.0W
AC≤3.5VA
AC≤3.5VA
AC≤3.5VA
AC≤3.5VA
Electrical Life
105OPS
105OPS
105OPS
105OPS
Mechanical life
107OPS
107OPS
107OPS
107OPS
Operating temperature
Weight
≤
≤
≤
≤
Mounting methods
outlet
Printed Circuit board
Flange,outletPrinted Circuit board
Flange,outletPrinted Circuit board
Flange,outlet
