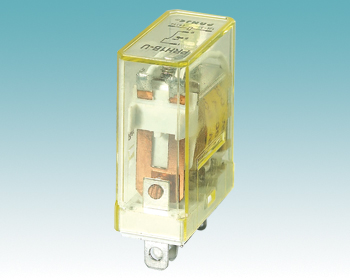

RH1B-U
-
RH1B-U

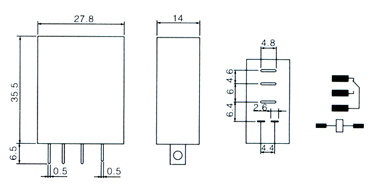

Size mm ： 14×27.8×42
Terminal layout:1Z
Contact capacity:
Contact resistance:≤50mΩ
Insulation resistance:≥100MΩ
Dielectric strength:BOC 1000VAC/BCC 1500VACModel
RR3P-U
RH1B-U
RY2SS-U
RY2S-U
Coil rated voltage
DC 6 to 220V
DC 6 to 220V
DC 6 to 220V
DC 6 to 220V
AC 6 to 380V
AC 6 to 380V
AC 6 to 380V
AC 6 to 380V
Coil rated power
DC≤2W
DC≤0.9W
DC≤0.9W
DC≤0.9W
AC≤3.5VA
AC≤1.2VA
AC≤1.2VA
AC≤1.2VA
Electrical Life
105OPS
105OPS
105OPS
105OPS
Mechanical life
107OPS
107OPS
107OPS
107OPS
Operating temperature
Weight
≤
≤
≤
≤
Mounting methods
outlet
Flange,outlet
Flange,outlet
Flange,outlet
