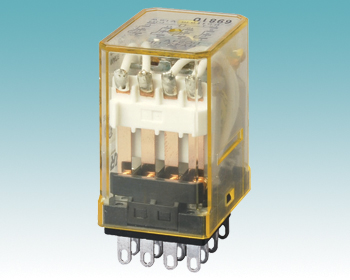

RY4S-U
-
RY4S-U

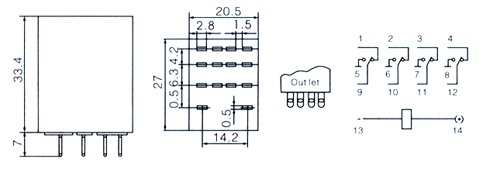

Size mm ：20.5×27×33.4
Terminal layout:4Z
Contact capacity :
Contact resistance :≤50mΩ
Insulation resistance:≥100MΩ
Dielectric strength :BOC 1000VAC/BCC 1500VACModel
RY4S-U
RM2S-U-U
RH2B-U
RH4B-U
Coil rated voltage
DC 6 to 220V
DC 6 to 220V
DC 6 to 220V
DC 6 to 220V
AC 6 to 380V
AC 6 to 380V
AC 6 to 380V
AC 6 to 380V
Coil rated power
DC≤0.9W
DC≤0.9W
DC≤0.9W
DC≤1.5W
AC≤1.2VA
AC≤1.2VA
AC≤1.2VA
AC≤2.5VA
Electrical Life
105OPS
105OPS
105OPS
105OPS
Mechanical life
107OPS
107OPS
107OPS
107OPS
Operating temperature
Weight
≤
≤
≤
≤
Mounting methods
Flange,outlet
Flange,outlet
Flange,outlet
Flange,outlet
