Use

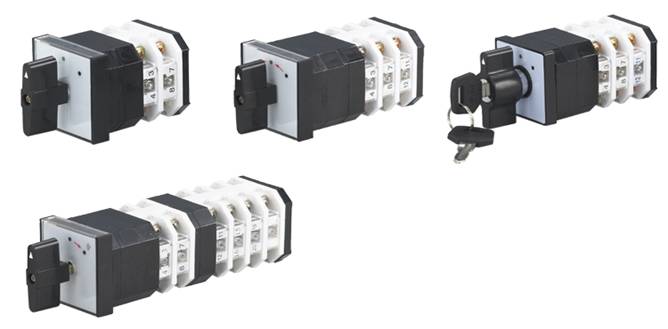

(LW12) series of universal switch is mainly used in ac 380V 50Hz, rated voltage and under dc voltage, and in the circuit 220V power conversion electric control circuit and electrical measurement instrument, may also directly control 5.5 KW and below mouse cage type.

Conform to the standards

GB14048.5-2001¡£

Classification

4.1According to the purposes has to control switch and direct control motor using switch.According to the operation mode has

4.2 positioning, since the complex type, type and orientation of the complex orientation brought since latching half device type.According to thecontact system points:

4.3 Lord makes the control switch 1-12, 12 species, Direct control motor using switch mainly has 2, 3, 4 and 6, four.According to the operation mode of

4.4 has 30 ¡ã, 90 ¡ã 45 ¡ã and four.According to the operation mode and fuck

4.5 actuator position as shown in the table right combination
