Use

LW6D series universal switch is mainly used in the communication, rated voltage to work 50Hz 380V dc voltage, the machine control circuit to220V power in various lines, the control and conversion, also can used for other occasions, such as the control circuit of the conversion of electromagnetic coil, electrical measurement instruments and servo motors, etc. GB14048.5 conform to the standards

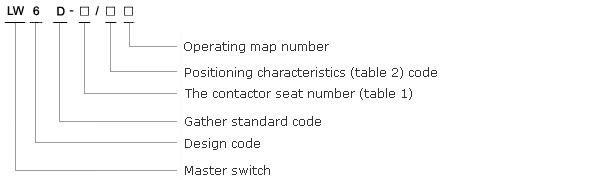

Models of meaning

Shape and size installation dimensions

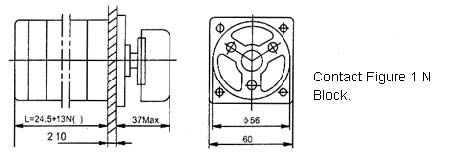

5.1 shape dimension (see figure 1

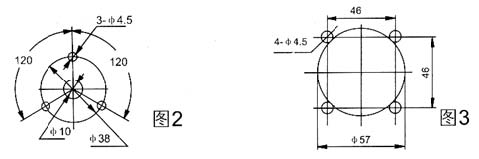

5.2 installation dimensions, see figure 2 and figure 3

Any one of the for installation
