Uses

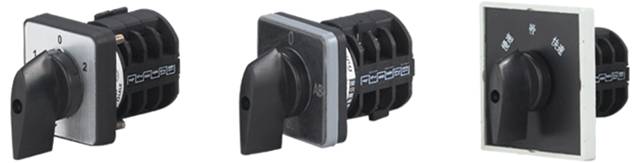

LW8D series universal conversion control switch is mainly used in the communication, rated voltage to 50Hz 380V and below, dc voltage to the circuit and 220V power conversion electric control circuit electrical measuring instrument. May also directly control small capacity 3-phase ac induction motor type cage (2.2 KW and 5.5 KW) Product standard (GB 14048.5.

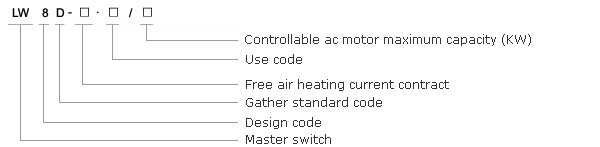

Models of meaning

Special code: TH said with products panel shape: hot, said that square directly control motor Y round with the model and the switch

Usage: Q - direct starting, N - reversible conversion, S - double speed motor speed

The main technical parameters

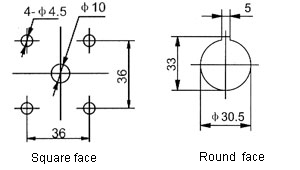

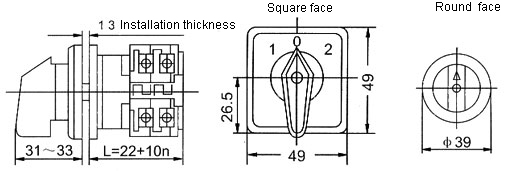

5.1 shape dimension
