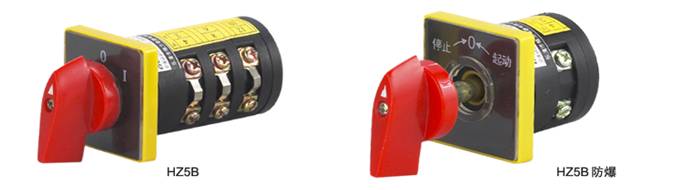

Use

Open HZ5B type combination of modified HZ5D relationship, suitable for ac rated voltage to work 50Hz, 380V and circuit in motor starting, stopping, reversing, shifting.

Conform to the standards

GB/14048.5-2001

Classification

4.1 According to the purposes and directly transform circuit is divided into two motor drive closed.

4.2 According to the contact for system is 1-8, 10£¬ 9 section.

4.3 According to the operation mode and operation device is a combination of location, 9 below.

Install size and shape

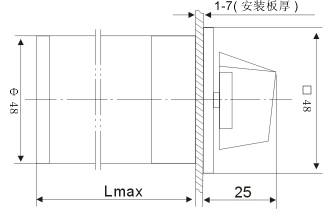

6.1 Shape dimension Shape dimension (see figure

Lmax=24+15n(n-Contact system for)

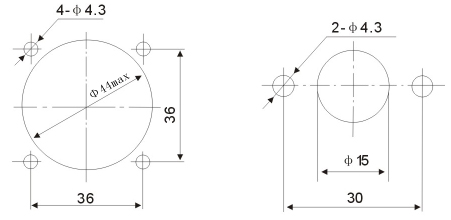

6.2 Shape dimension Installation dimensions (see figure
