Key Specifications & Feature

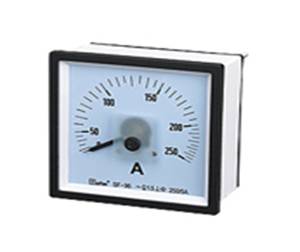

Square Type Moving Coil AC Ammeter wtih Rectifier 240¡ã
Model: 240¡ãSF-96-3 SF-72-3
> For high frequency or linear full scale AC measurements, these instruments measure average values of sinusoidal waveforms and are scaled in RMS values. The nominal mark is L.
Accuracy: Class 1.5
Specification: 0.5A 1A 1.5A 3A 5A 7.5A 10A 15A 20A
For 10A-10KA,Use external current transformer, which secondary current is 5A or 1A.
Case: Non-combustile ABS plastic material is used for making SF series'external case£¬and PPO plastic material is used for SF series's base; while Non-combustible PC plastic material is used for making SFT series'external case and base. Both of which will not suffer deformity under long-term use at 70¡æ and 120¡æ respectively.

 Changeable scale:Scale can be changed without opening meter, convenient to use, dust proof. Under the same secondary current, scale-change can be conducted without loss of accuracy or damaging the meter.
Mounting: SF series is flush mounting with bracket.
