Key Specifications & Feature

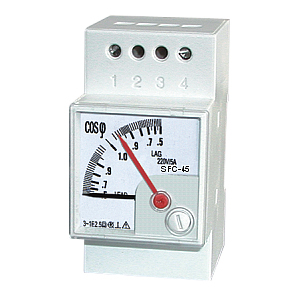

DIN Rail Moving Coil Power Factor Meter
Model: SFC-45
Accuracy: Class 2.5
Single phase£º100V 220V 380V 440V current: 5A
Three phase£º100V 220V 380V 440V current: 5A
Specification: 0.5cap-1-0.5ind, 0.3cap-1-0.1ind,0.4cap-1-0.4ind 0.7cap-1-0.2ind
Case: > Analog panel meter composed of a core-magnet moving coil movement and a built in or a separate power factor converter. The power factor converter determines the phase angle between current and voltage. COS¦µ is displayed at the moving coil movement. The nominal mark PF.
Mounting: DIN Rail
